Design Features

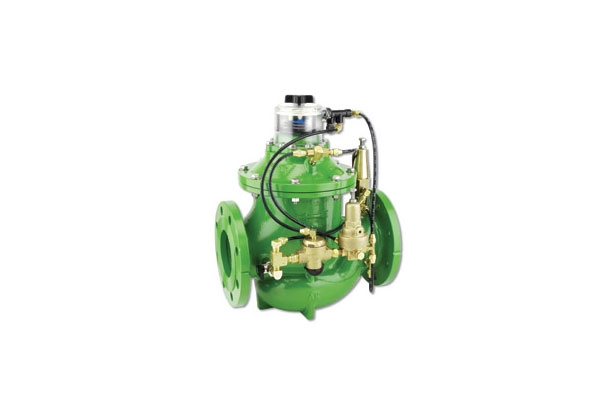

The BERMAD Model IR-972-D2-RV integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. The BERMAD AMV controls system demand to a preset maximum flow rate; reduces downstream pressure to a constant preset maximum, and automatically shuts itself after accurately delivering a preset quantity of water.

Flow Control and Pressure Reducing Automatic Metering Valve (AMV) Specifications

Integrated “All-in-One” Control Valve Saves space, cost and maintenance
Easy Modification to Mechanical Drive Hydrometer Adaptable to future computerized systems
Hydraulic Pressure and Batch Control Limits fill-up rate and consumer over-demand
Protects downstream systems
Non-computerized quantity follow-up and control
Internal Inlet & Outlet Flow Straighteners Saves on straightening distances
Maintains accuracy
Integrated Flow Metering Calibration Device
