Flow Control and Pressure Reducing Hydrometer

Design Features

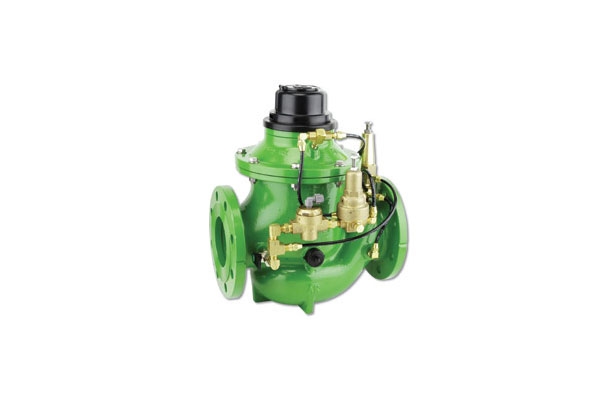

The BERMAD Model IR-972-M0-50-RV integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls irrigation together with the irrigation controller. The BERMAD Hydrometer limits the flow and downstream pressure to a constant preset maximum. It either opens or shuts in response to remote pressure commands.

Flow Control and Pressure Reducing Hydrometer Specifications

  • Integrated “All-in-One” Control Valve
  • r
 -Saves space, cost and maintenance
  • Hydraulic Flow, Pressure and On/Off Control

-Limits fill-up rate and consumer over-demand

-Protects downstream systems
  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Various pulse options
  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy
  • Integrated Flow Metering Calibration Device.
  • Paddle-Type Hydro-Mechanic Flow Pilot

-No added head loss

-Wide setting range
